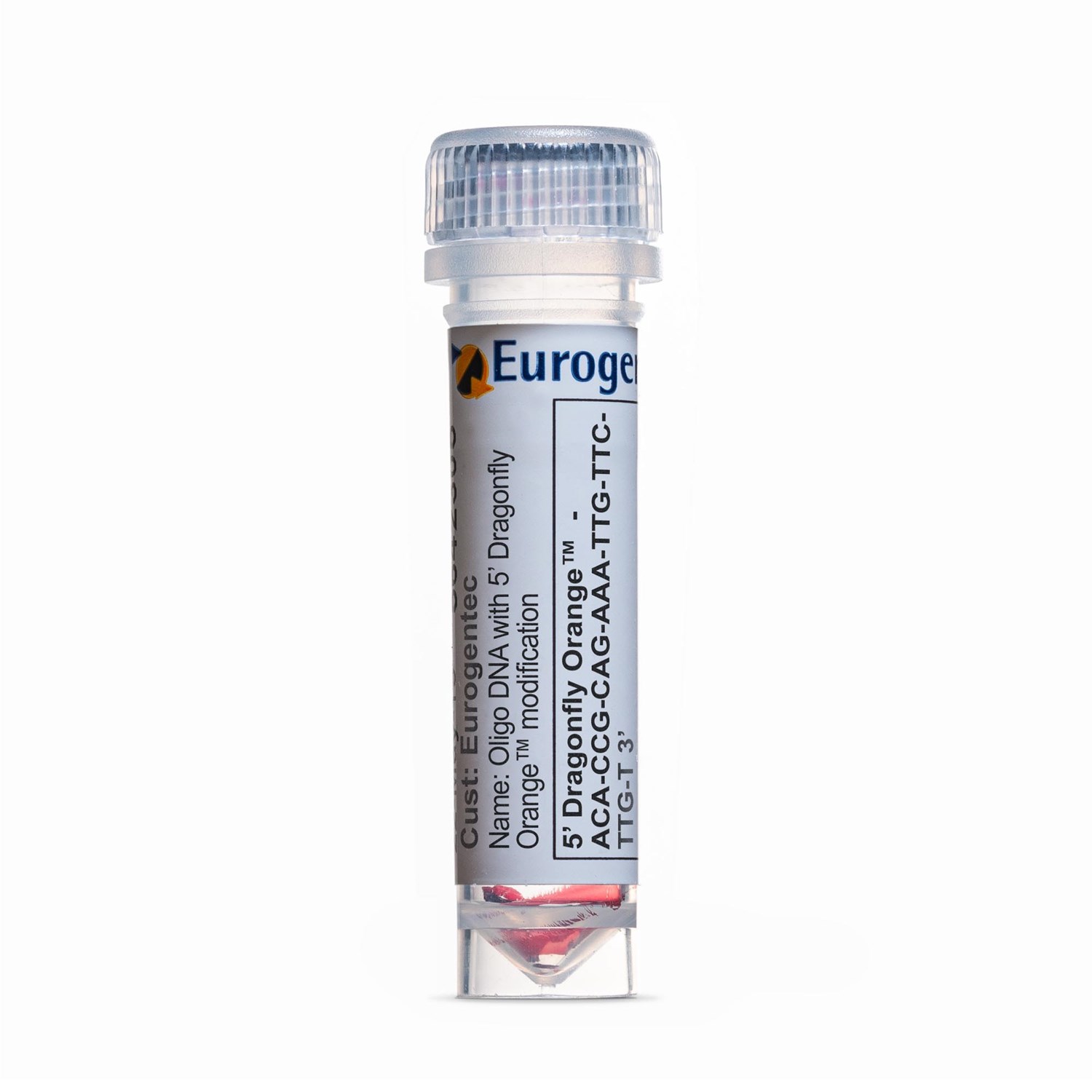

Example of a tube containing an Oligonucleotides with 5' Dragonfly Orange™ modification
Oligos

5' Dragonfly Orange™ - 1 modification

€160.00
Check your price
  • Cat.Number : MD-FL045-05004
  • Availability :
    In production

Synthesis scale

Configure
Add to wishlist

Dragonfly Orange™ is an exclusive dye which has been proven to be the best alternative to NED™.

With an emission maximum at 576 nm, very close to that of NED™ dye, the Dragonfly Orange™ fluorescent dye is high performing and is compatible with all major thermocyclers and probe/primer formats. Coupled with BHQ-2™, the Dragonfly Orange™ can be detected by channel 3 or TAMRA channel.

Specifications

Chemistry
Molecular Mass/ Weight
  • 755,62
Properties
Absorbance (nm)
  • 554
Emission (nm)
  • 576
Color
Modification
Modification Position
  • 5'
Post Synthesis Coupling
  • True
Storage & stability
Resuspension condition
  • - Spin the tube briefly to collect the pellet in the bottom of the tube - Add an appropriate volume of recommended buffer (refer to technical data sheet) - Allow the tube to stand a few minutes - Vortex the tube for 15 seconds
Storage Conditions
  • Dried Oligonucleotides are stable for 18 months at ambiant temperature. Oligonucleotides in solutions are stable for 24 months at -20°C. (Tolerance -20°C± 5°C. ) Fluorescent dyes should be protected from light For more information please refer to the Reconstitution-Storage-Stability page
Activity
Usage
  • Research use
Codes
Code Nacres
  • NA.51

Downloads

You may also be interested in the following product(s)

Example of a tube containing an Oligonucleotides with 3' QXL 610 modification

3' QXL® - 1 modification

Cat.Number : MD-QU700-03004
€103.00 Excl. Tax

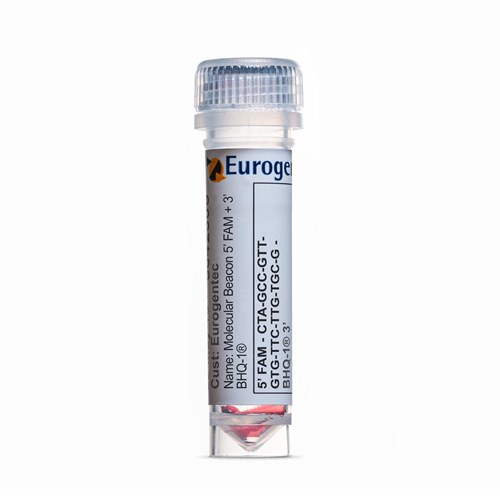

Example of a tube containing a Molecular Beacon 5’ FAM plus 3’ BHQ-1
