Oligos

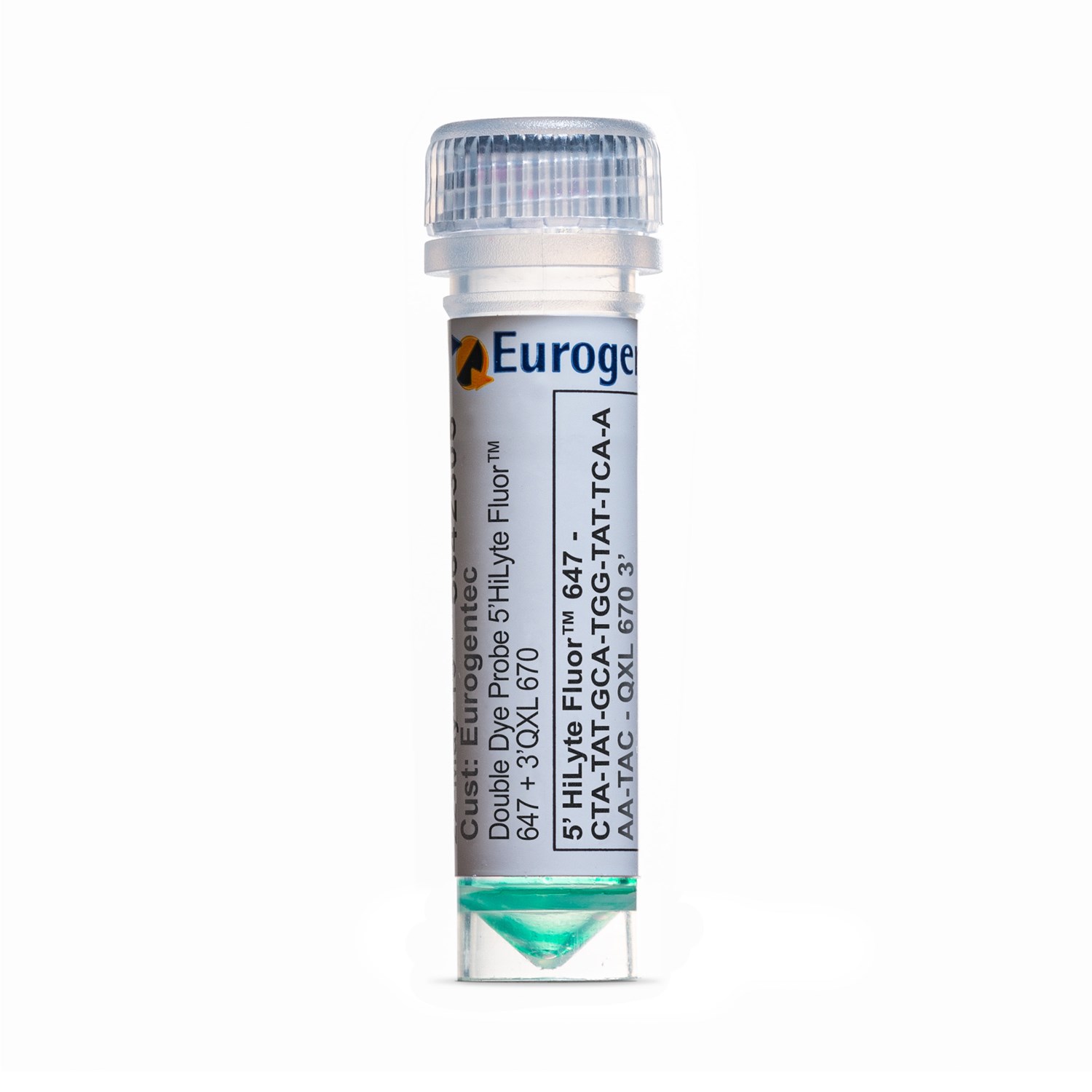

DD Probe 5' HiLyte 647 3' QXL® 670 - 1 probe

290.00
Check your price
  • Cat.Number : PB-DDQH6-004
  • Availability :
    In production

Synthesis scale

Alternative choices

Eurogentec is a supplier of Double-Dye Oligonucleotide probes and offers the largest number of fluorescent reporters and quenchers. Double-Dye Oligonucleotide probes with various non-fluorescent quenchers and a variety of fluorescent dyes can be conveniently ordered using our web ordering interface. Furthermore, as many applications, like genotyping or gene expression profiling, are requiring small amounts of several different probes, Eurogentec has developed a high-throughput platform to produce high quality small scale Real-Time qPCR Double-Dye probes.

LNA® Double Dye probes
LNA® bases have a modification to the ribose backbone that locks the base in the C3’-endo position. Compared to DNA Double-Dye probes, LNA® Double-Dye probes exhibit higher thermal stabilities, specificity and reproducibility. They show better mismatch discrimination which allows the use of shorter probes. Furthermore, LNA® offers the possibility to adjust Tm values of primers and probes in multiplex assays.
What you have to know about your double-dye probe
All Double-Dye Oligonucleotides are HPLC purified. They are controlled by analytical HPLC and MALDI-TOF Mass Spectrometry. Double-Dye Oligonucleotides are provided lyophilized in individual 2 mL tubes. Higher scales from 2.5 µmol may be delivered in 50mL tubes. The optimal recommended length of Double-Dye Oligonucleotide probes is 25 bases. The maximum length of Double-Dye Oligonucleotides is 35 bases. In case of extra long Double-Dye Oligonucleotides probes are required, quenchers like Black Hole Quencher®, Deep Dark Quencher I and TAMRA can be coupled internally.

How do the double-dye probes work?
Double-Dye Oligonucleotides have a fluorescent reporter dye and a quencher at their 5’ and 3’ ends, respectively.

Double-Dye Oligonucleotides are designed to anneal between the upstream and downstream PCR primers. The Tm of the Double-Dye Oligonucleotide probe must be higher than the upstream primer, to avoid that the later primer is already being extended while the Double-Dye Oligonucleotide probe is not yet annealed.

During the amplification process, the 5’-> 3’ exonuclease activity of the Taq DNA polymerase cleaves the fluorophore from the probe. Since the fluorophore is no longer subjected to FRET quenching, it starts to fluoresce. This fluorescence can be measured, and the level is directly proportional to the amount of target DNA accumulating during the PCR reaction.

HiLyte Fluor™ 647 - Absorbance = 650 nm, Emission = 675 nm
QXL® 670: Quenching range [610-700]nm; Max : 668 nm

Specifications

Properties
Absorbance (nm)
  • 650
Emission (nm)
  • 675
Modification
Post Synthesis Coupling
  • True
Quantity & Purity
Purification Method
  • HPLC
Storage & stability
Form
  • Dried
Resuspension condition
  • - Spin the tube briefly to collect the pellet in the bottom of the tube - Add an appropriate volume of recommended buffer (refer to technical data sheet) - Allow the tube to stand a few minutes - Vortex the tube for 15 seconds
Storage Conditions
  • Dried Oligonucleotides are stable for 18 months at ambiant temperature. Oligonucleotides in solutions are stable for 24 months at -20°C. (Tolerance -20°C± 5°C. ) Probes should be protected from light For more information please refer to the Reconstitution-Storage-Stability page
Activity
Usage
  • Research use
Codes
Code Nacres
  • NA.51
