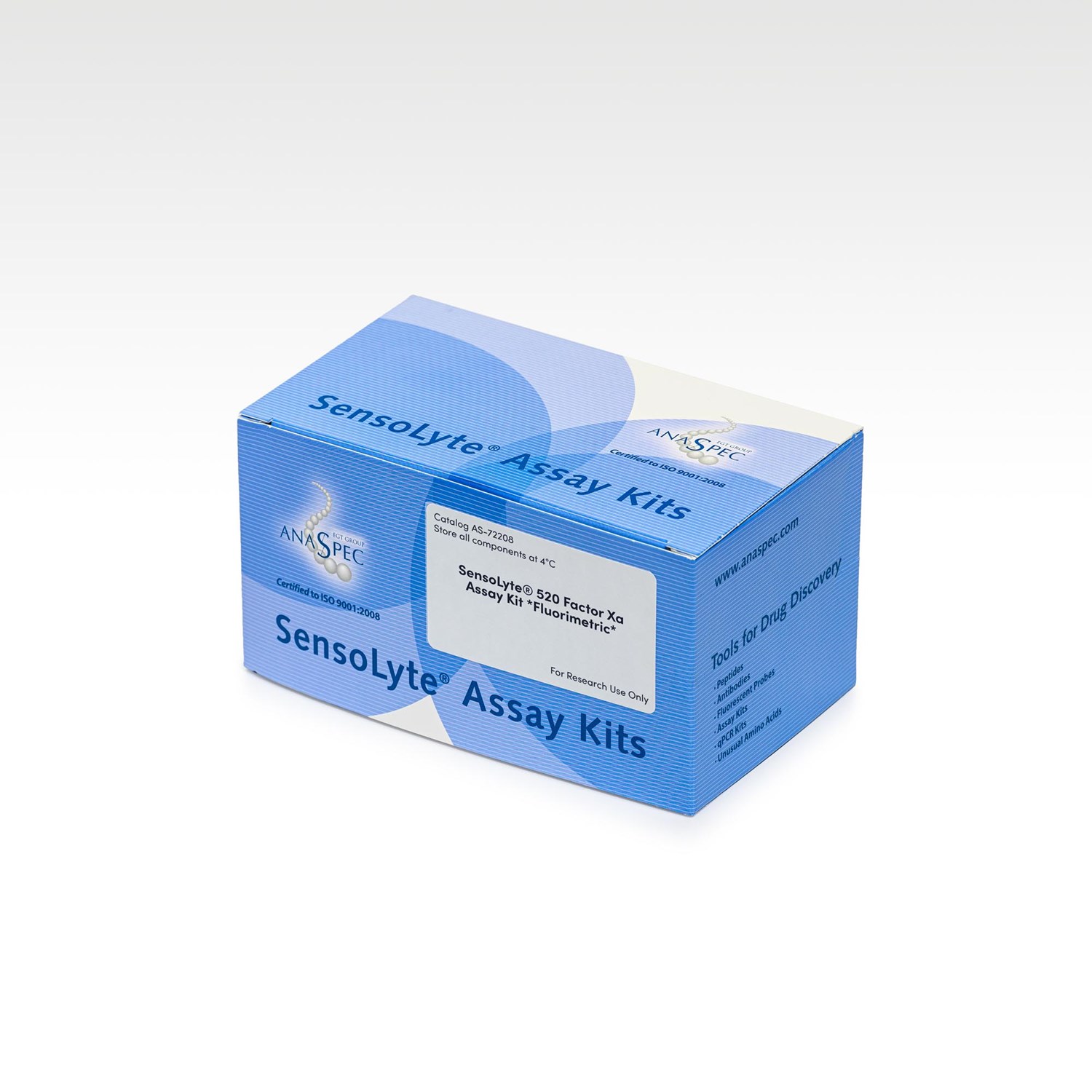

SensoLyte® 520 Factor Xa Assay Kit Fluorimetric - 1 kit

Check your price
  • Cat.Number : AS-72208
  • Availability :
    In stock
  • Shipping conditions : Ice delivery fees must be applied

Alternative choices


Factor Xa (FXa) is a serine endopeptidase composed of two disulfide-linked subunits. FXa leads to blood clot formation by converting prothrombin to thrombin through the prothrombinase complex. FXa is generated from zymogen Factor X via the intrinsic and extrinsic pathways and is the rate-limiting step in the propagation of thrombin generation. In the presence of Ca2+ ions, FXa forms prothrombinase with factor Va on the phospholipid membrane of the activated platelets. FXa has emerged as an attractive target for drug discovery for thromboembolic diseases.
The SensoLyte® 520 Factor Xa Assay Kit provides a convenient assay for high throughput screening of FXa inhibitors or continuous assay of enzyme activity. It detects FXa activity using a 5-FAM/QXL™ 520 fluorescence resonance energy transfer (FRET) peptide. In the intact FRET peptide, the fluorescence of 5-FAM is quenched by QXL™ 520. Upon cleavage into two separate fragments by FXa, the fluorescence of 5-FAM is recovered, and can be monitored at excitation/emission wavelengths = 490 nm/520 nm. With excellent fluorescence quantum yield and longer wavelength, 5-FAM shows less interference from autofluorescence of test compounds and cellular components. The assays are performed in a convenient 96-well microplate format.


Kits components
  • Component A: 5-FAM/QXL™-520 Factor Xa substrate, Ex/Em=490 nm/520 nm upon cleavage: 0.6 mM, 50 µL Component B: 5-FAM, fluorescence reference standard, Ex/Em=490 nm/520 nm: 0.6 mM, 10 µL Component C: Purified Bovine Factor Xa: 500 ng/µL, 20 µL Component D: 2X Assay Buffer: 25 mL Component E: Factor Xa Inhibitor: 1 mM, 20 µL
UniProt number
  • P00742
Absorbance (nm)
  • 490
Emission (nm)
  • 520
Storage & stability
Storage Conditions
  • Store component C at -80°C. Store all other components at -20°C. Component D can be stored at room temperature for convenience. Protect components A and B from light and moisture.
Biomarker Target
Detection Method
Detection Limit
  • 7.8 ng/ml
Research Area
Sub-category Research Area
  • Research use
Code Nacres
  • NA.32

You may also be interested in the following product(s)

Tube of PAR-4 Agonist amide peptide

Protease-Activated Receptor-4, PAR-4 Agonist, amide

Cat.Number : AS-60218-1
88.00 Excl. Tax

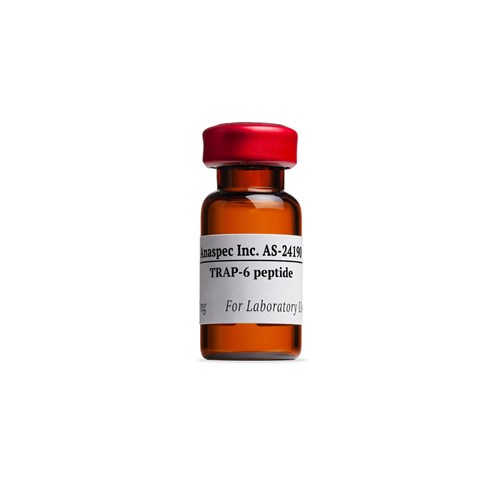

Tube of TRAP-6 peptide
