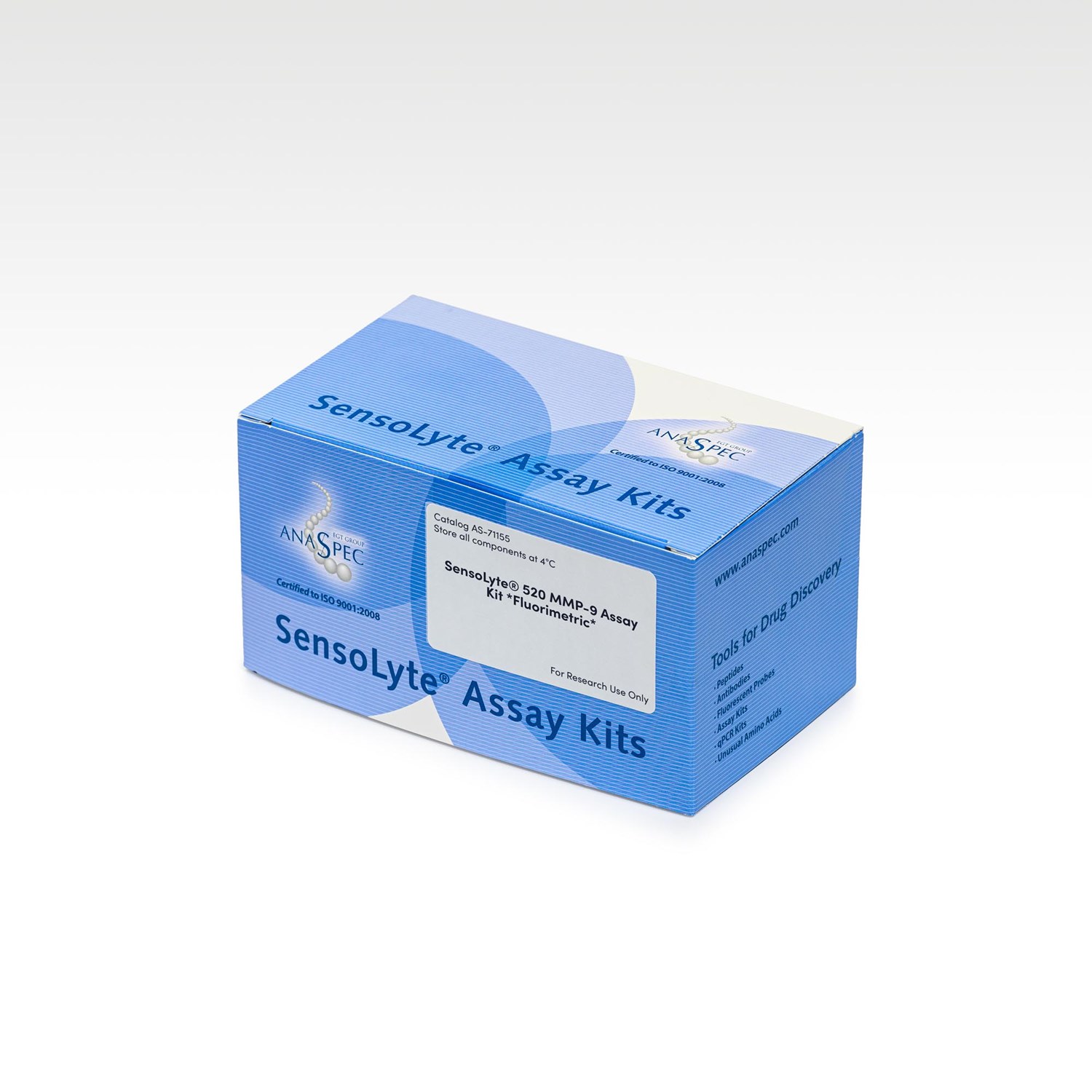

SensoLyte® 520 MMP-9 Assay Kit Fluorimetric - 1 kit

Check your price
  • Cat.Number : AS-71155
  • Availability :
    In stock
  • Shipping conditions : Ice delivery fees must be applied

Alternative choices


MMP-9 (gelatinase-B, collagenase-IV) is involved in quite a few diseases such as a cancer, angiogenesis, alopecia and metastasis.
SensoLyte® 520 MMP-9 Assay Kit uses a 5-FAM (fluorophore) and QXL520™ (quencher) labeled FRET peptide substrates for continuous measurement of the enzyme activities. In an intact FRETpeptide, the fluorescence of 5-FAM is quenched by QXL520™. Upon the cleavage of the FRET peptide by MMP-9, the fluorescence of 5-FAM is recovered, and can be continuously monitored at excitation/emission = 490 nm/520 nm. With superior fluorescence quantum yield and longer emission wavelength, 5-FAM/QXL520™ based FRET peptide is less interfered by the autofluorescence of test compounds and cellular components and provides better assay sensitivity.
Members of the MMP family have poor substrate sequence specificity, making it difficult to use a peptide substrate alone to differentiate the activity of a particular MMP from other MMPs. If several MMPs are coexisting in your samples and you would like to specifically measure MMP-9 activity, please choose the SensoLyte® Plus MMP-9 Assay Kit, Cat# AS-72017.


Kits components
  • Component A: MMP-9 substrate 5-FAM/QXL™520 FRET peptide Ex/Em=490 nm/520 nm upon cleavage: 60 µL Component B: 5-FAM-Pro-Leu-OH, Fluorescence reference standard Ex/Em=490 nm/520 nm: 1 mM, 10 µL Component C: APMA, 4-aminophenylmercuric acetate: 1 M, 20 µL Component D: Assay buffer: 20 mL Component E: Stop solution: 10 mL
UniProt number
  • P14780
Absorbance (nm)
  • 490
Emission (nm)
  • 520
Storage & stability
Storage Conditions
  • Store all components at -20°C. Protect components A and B from light. Components D and E can be stored at 4 °C for convenience.
Biomarker Target
Detection Method
Detection Limit
  • 0.2 ng/ml
Research Area
Sub-category Research Area
  • Research use
Code Nacres
  • NA.32
