An IP-friendly portfolio of dyes for diagnostics based real-time qPCR
Access™ Dyes and Quenchers include ATTO, FAM, Yakima Yellow®, ROX, HiLyte Fluor™, BHQ®, MGB-EDQ, QXL® and other fluorescent dyes and dark quenchers on request.
Our selection of dyes for diagnostic tests covers the full visible spectrum, from blue to far-red-shifted wavelengths.
Find in the table here below, the most efficient dye and quencher pairs for qPCR Probes.
| Channels | Dye and Quencher pairs | Dye Emission λmax (nm) |
Quencher Abs λmax (nm) |
|---|---|---|---|
| ● Deep Blue | ATTO 390 / BHQ®-1 | 476 | 534 |
| ATTO 425 / BHQ®-1 | 485 | 534 | |
| ● Green Yellow | FAM / BHQ®-1 | 520 | 534 |
| FAM / MGB-EDQ | 520 |
342/545 |
|
| ● Yellow Orange | YY / BHQ®-1 | 549 | 534 |
| HEX / BHQ®-1 | 556 | 534 | |
| HEX / MGB-EDQ | 556 |
342/545 |
|
| ATTO 550 / BHQ®-2 | 576 | 579 | |
| ● Orange Red | ROX / BHQ®-2 | 602 | 579 |
| ROX / MGB-EDQ | 602 | 342/545 | |
| ATTO 590 / BHQ®-2 | 622 | 579 | |
| ● Red | ATTO 647 N / BHQ®-2 | 664 | 579 |
| ATTO 647 N / BHQ®-3 | 664 | 680 | |
| HL647 / QXL®670 | 675 | 668 | |
| ● Infrared | HL750 / IRQXL® | 778 | 772 |

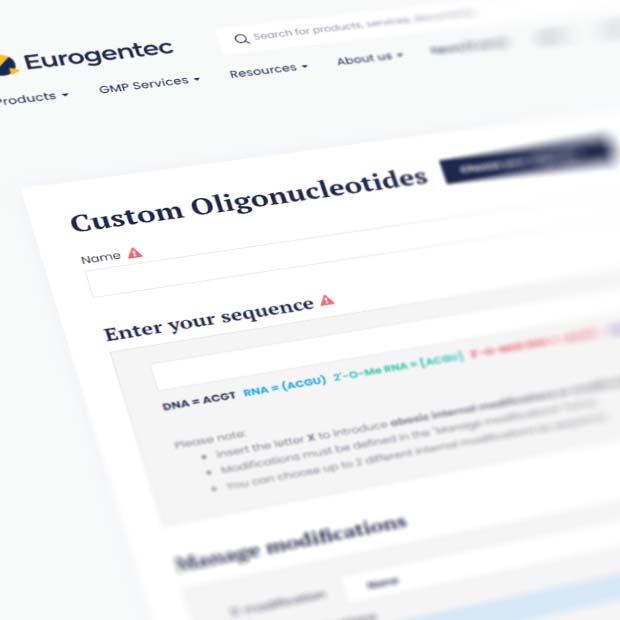

Select and order your oligonucleotides
